We took some photoes of hologram making. It'll help you to understand how we make holograms. You are welcome to visit our factory to see all running machines in process of production.

Click to Visit Affordable Hologram Machinery

Following is some hologram sticker production process photoes Page 1    Page 2     Page 3



Hologram origination and hologram operation nickel after electronic forming

hologram processhologram process

Hologram electronic forming shim & hologram shim cleaning



master shooting roommaster shooting room

Soft hologram electronic forming tank and hard hologram electronic forming tank



master shooting roommaster shooting room

hologram electronic forming system.



electronic forming chemicallamination machine

Mix up chemical for hologram electronic forming



Soft tank and hard tank

Tape holographic master origination for electronic forming copying

Hologram mother master made after soft tank electronic forming.

Hologram Sticker Embossing

Hologram Sticker Embosser Type 1

master shooting roommaster shooting room

Type 1 hologram embossing with unwind side guide



master shooting roommaster shooting room

hologram embosser unwind side guide and embossing cylinder



master shooting roommaster shooting room

Fix hologram operation shim onto hologram embosser cylinder



Hologram film is embossed with speed which is 1000 meters per hour.

There're three cylinders for this embosser

Transparent hologram film also is embossed fast with this hologram printing equipment.

Hologram Sticker Embosser Type 2



master shooting roommaster shooting room




Auto tension control hologram embosser and embosser's cylinder



Hologram Hard embosser Model 3

Advance model seamless embossing hologram embosser for hologram hot stamping foil or hologram sticker in roll format

This hologram embosser make embossing hologram roll in precise gap with any distance.

The hologram made by this embosser have precise gap. So the hologram sticker roll or hologram hot stamping foil is suitable for simple automatic application.

Hologram PET film is embossed continously with same gap precisely.

Hologram PET film is embossed continously with same gap precisely.



Hologram Sticker Lamination



master shooting roomlamination

Lamination machine to coating glue for hologram sticker



laminationmaster shooting room

Lamination machine to coating glue for hologram sticker

hologram hot stamping coating machine

Hologram coating machine for hologram hot stamping foil and holographic sticker as well. This machine has automatic side guide for unwind and rewind. The drying hot air cycles in the heating container by fan and heater. Unwind and rewind tension control helps hologram foil to be coated and laminated smoothly for die-cutting and slitting.



Label cutting Machine, sheeting and slitting



die-cuttingmaster shooting room

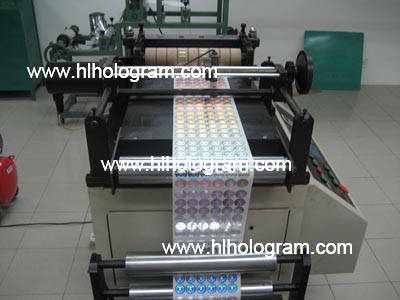

Die cutting machine to cut hologram stickers.



Dot-matrix Hologram master originationmaster shooting room

Side guide sensors for hologram die cutting machine

Holograohic sticker cutting according position of photo cell(register mark) every line.



Hologram sticker is slitted into reels.

It has slitter which can slit big hologram sticker roll into small rolls.

Hologram sticker is slitted into reels.

Hologram sticker is slitted into reels.

Performance and Characteristics:

1. Automatic anti-deviation when unwinding foil. It can improve precision of unwind to decrease deviation in horizontal direction.
2. Intelligent photoelectricity location position ability. It can locate the right position of white register mark precisely.
3. Computer control technology. It's easily to set parameters for die-cutting according different speed and size of stickers
4. Rotation ability of die-cutting model. It can help to adjust model position precisely and can die-cut sticker in some special direction.
5. Rewind independently which improves to rewind the waste film smoothly.
6. Two sets rewind to help rewind small rolls after slitting smoothly.

Main Parameters:

1. Die cutting width and length: a.200X200mm2         b.300X200mm2
2. Width of foil go through: 340 mm
3. Die-cutting speed: 250 times/min (max)
4. Register mark Positioning precision: 0.10mm
5. Precision to rectify a deviation: 0.15 mm
6. Max unwind Diameter: 500mm, Max rewind Diameter: 400mm, Max rewind Diameter for waste film: 350mm
7. Min slitting width: 12mm
8. Thickness of liner: > 65/g glassine liner
9. Power: 220V 2000W
10: Dimension: 450mm*900mm*1400mm
11. Weight: 700Kg

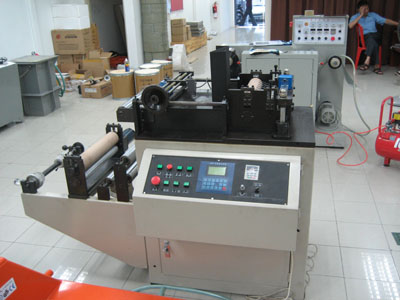

Hologram sticker is automatic sheeted into panels and counted how many sheet is done.

Hologram sticker is automatic sheeted into panels.



Sheet machine

master shooting roommaster shooting room
Hologram StickerDot-matrix Hologram

Sheeting machine, Hologram Sticker in roll and sheet



Hologram Products



HologramHologram

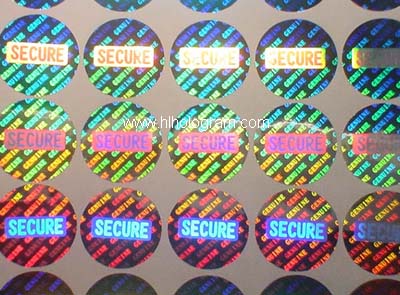

Holographic sticker, instant hologram smaple in stock.



HologramHologram

Holographic sticker, instant hologram smaple in stock.



HologramHologram

Hologram dot-matrix effect photo, Holographic sticker, instant hologram smaple in stock and custom hologram



HologramHologram

Hologram dot-matrix effect photo, Holographic sticker, instant hologram smaple in stock and custom hologram



HologramHologram

2D/3D Hologram photo & Dot-matrix Hologram photo



HologramHologram

Tamper proof hologram and VOID hologram



HologramHologram

2D/3D Hologram, honeycomb & Security Holographic Sticker



HologramHologram

2D/3D Hologram, in stock, instant hologram



HologramHologram

Hologram, in stock, instant hologram



HologramHologram

Hologram, in stock, instant hologram. Tamper evident hologram



HologramHologram

Hologram pouch and ID hologram in stock



HologramHologram

Hologram pouch and ID hologram in stock



HologramHologram

Dot-matrix Hologram with animated movement



HologramHologram

2D/3D Hologram photo & Dot-matrix Hologram photo



Hologram

Dot-matrix Hologram with animated movement



HologramHologram

Hologram cutting



2D/3D holographic master origination photo & Special master
