To recombine small master into big master.
Small recombiner recombination size upto to 220mm*160mm.
Big recombiner recombination size upto1500mm*650mm.
Small holographic master Recombination Machine(for dot-matrix master)
holographic master recombination machine
Hologram nickel shim recombination equipment
Hologram recombine
Small Mold recombination machine to recombine small master up size to 220mm*160mm. Microprocessor-Controlled, automatic simple operation with high precision.
Specifications:
1. Maximum recombination area: 220mm*160mm
2. Recombination precision: 0.05mm
3. Recombination function: Misplace, slope , blank, reverse
4. Control: PC, Windows operation system
5. Power: 220V/1.5KW
6. Dimension: 600mm*500mm*500mm(L*W*H)
7. Weight: 200 kg

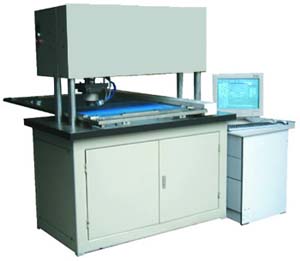

Big holographic master Recombination Machine(for dot-matrix master)
New Mold recombination machine based on our updated technology. It can recombine big master up size to1500mm*650mm. PC controlled, automatic simple operation with high precision. It has anti-static and dust equipmentto keep the plate clean.
Specifications:
1. Maximum recombination area: 650mm*1550mm
2. Recombination precision: 0.01mm
3. Recombination function: Misplace, slope , blank, reverse
4. Control: PC, Windows operation system
5. Power: 380V/3KW
6. Dimension: 1800mm*1300mm*1750mm(L*W*H)
7. Weight: 1300 kg
This is our previous old mold recombination machine
